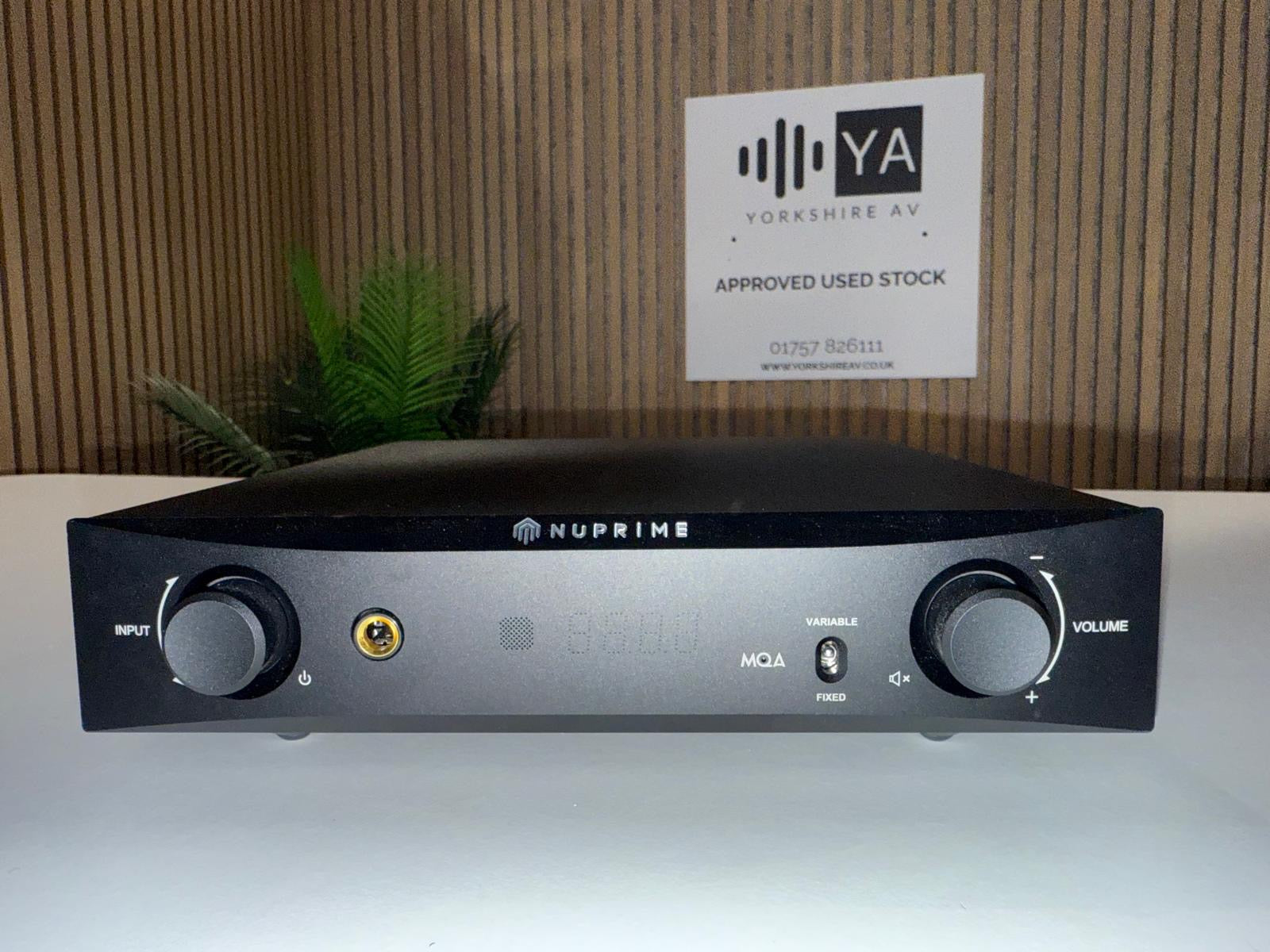

Nuprime DAC-9 SE (DAC)

Immaculate condition - like new.

Fully packaged, tested.

A Reference Class Preamp

To meet the requirement of customers who want to eliminate extra components in their system, a high-end preamp capable of driving the power amplifier directly is an essential part of the design. The DAC-9SE includes features borrowed from traditional high-end preamps:

• Analog volume control design using a low noise and low distortion resistance ladder circuit similar to switch-resistor network.
• Individually adjustable volume on each input for precise source level matching.
• Volume adjustment in 99 precise, 0.5dB increments.

The Heart

As the heart of an audio system, the DAC-9SE supports an extensive number of inputs and formats. Utilizing one of the world’s best performing 32-bit audio DACs, the AK4493, EQ is only a first step for designing the ultimate DAC. State-of-the-art solutions, readily available to all vendors, along with the experience and proprietary know-how in creating many Editor’s Choice and Product of TheYear award-winning products elevate the NuPrime DAC-9SE well above the competition.

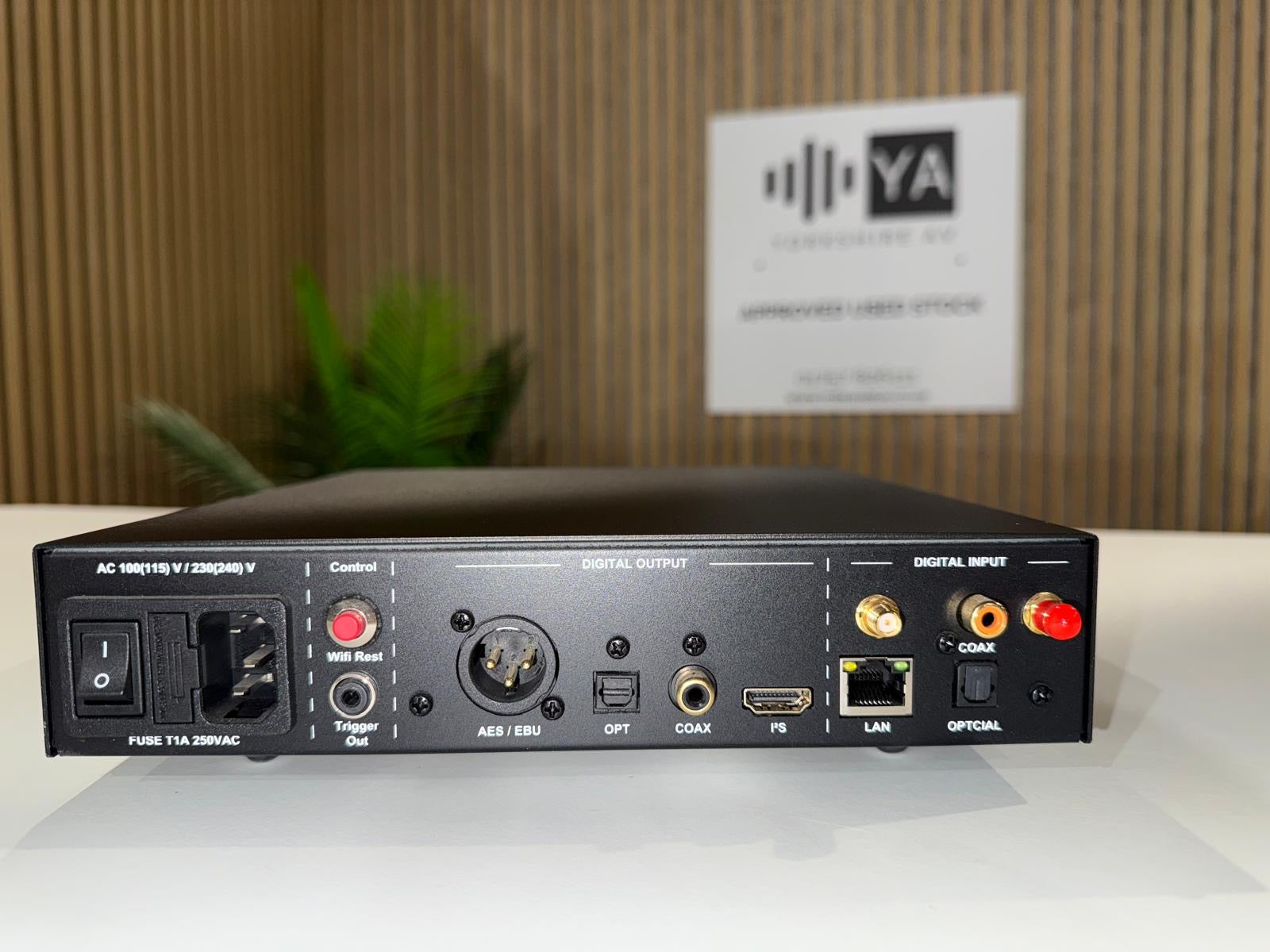

• Inputs:
  • 1 x USB PCM/DSD Digital (PCM up to 384kHz & DSD up to DSD256)
  • 1 x Coaxial Digital S/PDIF (PCM up to 768KHz supporting DoP format DSD256)
  • 1 x Optical Digital S/PDIF (PCM up to 192KHz supporting DoP format DSD64)
  • 1 x Bluetooth or WiFi receiver module (optional)
  • 1 x IIS/DSD HDMI connector (PCM 768KHz/32Bit and DSD 256 data streams)
  • 1 x Analog Stereo RCA
• Outputs:
  • 1 pair of stereo RCA out: 4Vrms
  • 1 x pair of stereo XLR balanced out: 8 Vrms
  • 1 x Optical S/DPIF out (PCM up to 192KHz supporting DoP format DSD64)
• Frequency response: 20 Hz – 20 KHz / ±0.3 dB
• SNR: > 110 dB
• THD+N: < 0.0005%
• Dimensions: 235 mm W x 281 mm D x 55 mm H (including feet)
• Weight: 2.5Kg
• Worldwide AC voltage: (90VAC~130VAC // 210VAC~ 250VAC) with voltage select switch
• AC Fuse: Slow-blow, 2.5A, 250VA
• Available in black and silver anodized aluminum finish.

Note : DAC-9SE does not guarantee that all IIS/DSD source will operate and be compatible due to wide variety of brands and custom specs.
